Clamshell Phone Front Cover (1*1) / Two-plates mold / Cold runner No.21869

Dongguan Chitwing Technologies Co., Ltd
Contact Now

Clamshell Phone Front Cover (1*1) / Two-plates mold / Cold runner No.21869

Brand Name : Chitwing

Model Number : Mobile Phone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 300.000 X 300.000 X 281.000

IMM Tonnage : 110T

Mold Weight : 152kg

Standard : LKM

Features : 13 lifters

Gate : Submarine gate

Mold base P/N : CI2530 609080

Type : Two-plates mold

Injection/runner type : Cold runner

Part material : PC

Contact Now

Clamshell Phone Front Cover (1*1)

No.21869

【Mold size】: 300X300X281
【Mold net weight】: 152kg
【Mold base P/N】: CI2530 609080
【Type】: Two-plates mold

【Features】: 13 lifters
【Standard】: LKM
【Tool life】: 500K shots
【Gate】: Submarine gate

Clamshell Phone Front Cover (1*1) / Two-plates mold / Cold runner No.21869

【Part material】: PC
【Part weight】: 8.7g
【Part size】: 55.6X6.23X103.98mm
【IMM Tonnage】: 110T

Clamshell Phone Front Cover (1*1) / Two-plates mold / Cold runner No.21869

【Surface finish】: A surface EDM with VDI27#
【Part material of mold cavity】: Harden (1*2/S136)
【Part material of mold core】: Harden (1*2/S136)

Clamshell Phone Front Cover (1*1) / Two-plates mold / Cold runner No.21869

【Injection/runner type】:Cold runner

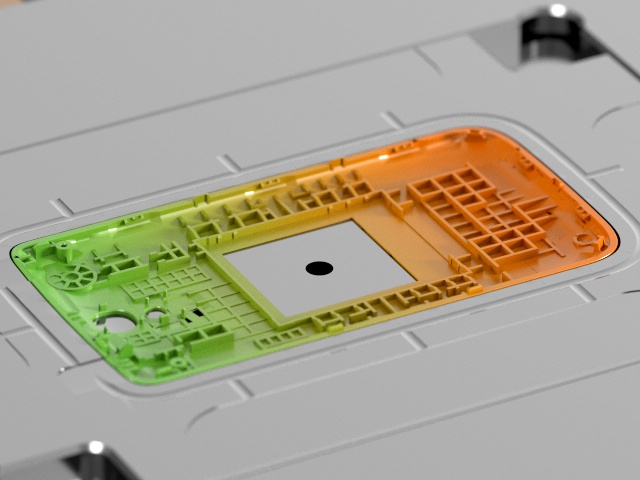

Display diagram
