Home > ABS Injection Molding >

VR Rear Shell Ring (1*2) / Cold runner /Three-plates mold No.22731

Product Categories

Dongguan Chitwing Technologies Co., Ltd

Contact Now

Name: VR Rear Shell Ring 12 Cold runner Threeplates mold No22731
Brand: Chitwing
Price: 1 USD

Brand Name : Chitwing

Model Number : VR Products

Certification : ISO 9001:2015

Place of Origin : Vietnam

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 180 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 300 X 300 X 306

IMM Tonnage : 80T

Mold Weight : 166kg

Product material : PC+ABS

Mould life : 500000 shots

Runner : Cold runner

Gate type : Side gate

Design software : (3D)UG 4.0/ (2D）CAD

Contact Now

VR Rear Shell Ring (1*2)

No.22731

Mold base	Standard mold base P/N: FCI2530.608080
Length	Width	Height	Injection/runner type	Standard
300	300	306	Cold runner	LKM
Gate	Side gate	The pin point gate turns to the side gate
This is a three-plates mold, which requires no post-processing and can realize auto demolding

VR Rear Shell Ring (1*2) / Cold runner /Three-plates mold No.22731

VR Rear Shell Ring (1*2) / Cold runner /Three-plates mold No.22731

Surface finish		1. A surface with MT11010 etch
		2. Other surfaces EDM with VDI18# (Makino)
Steel of cavity and core		Harden (1*2/S136)

VR Rear Shell Ring (1*2) / Cold runner /Three-plates mold No.22731

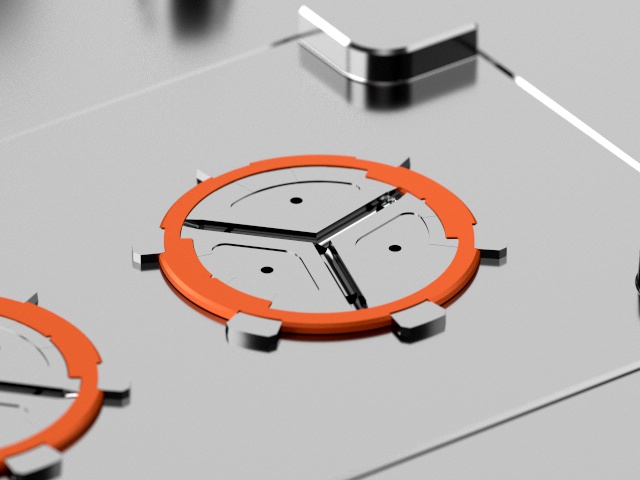

Display diagram
