Transparent Battery Case (1*2) / Cold runner / Three-plates mold No.24500

Name: Transparent Battery Case 12 Cold runner Threeplates mold No24500
Brand: Chitwing
Price: 1 USD

Wholesale Transparent Battery Case (1*2) / Cold runner / Three-plates mold No.24500 from china suppliers

Brand Name : Chitwing

Model Number : E -cigarettes

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 320 X 350 X 426

IMM Tonnage : 110 T

Mold Weight : 294KG

Part material : PC+ABS

Type : Three-plates mold

Features : Push plate

Gate : tab gate (the pin point gate turns to the side gate)

Custom mold base P/N : FCI3527.110100105

Mold Runner : Hot Sprue Cold Runner

Contact Now

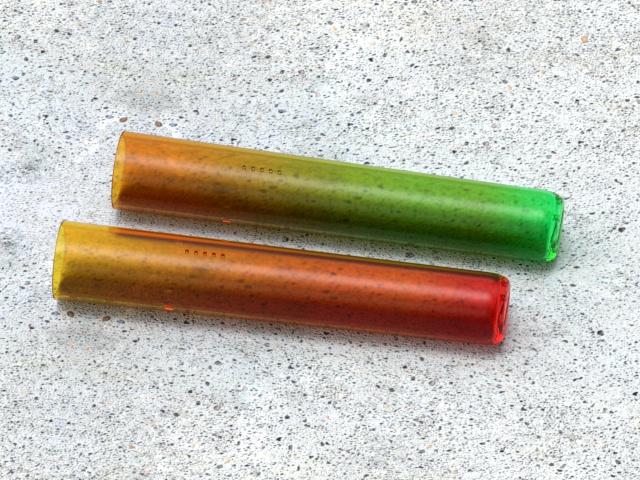

Transparent

Battery Housing (1*2)

No.24500

Chitwing		Mold base: custom mold base FCI3527.110100105				Mold weight
Length	320	Width	350	Height	426	294kg
LKM standard		Three-plates mold		Cold runner		IMM Tonnage
						110T

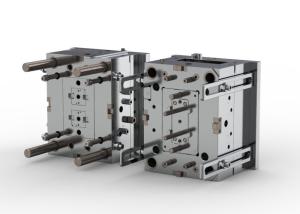

Transparent Battery Case (1*2) / Cold runner / Three-plates mold No.24500

The mold is designed with mold base > HB280, tab gate, and the pin point gate turns to the side gate to ensure the melt flow.

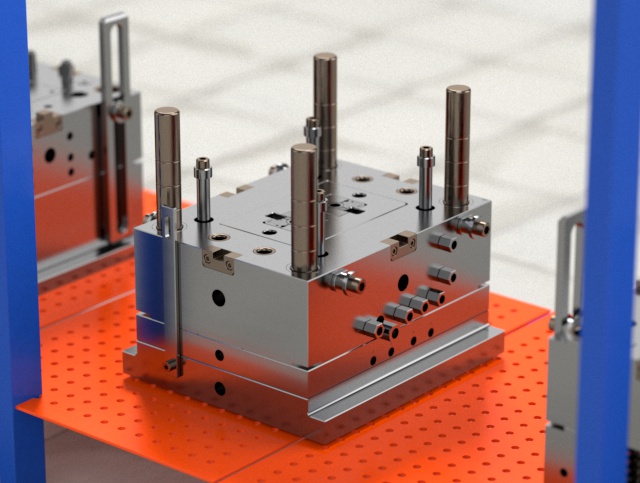

Transparent Battery Case (1*2) / Cold runner / Three-plates mold No.24500

The mold surface polished to 1000# sandpaper to increase the surface glossiness, so that the molded part is smoother w/o sticking with the mold; harden the cavity and core with 1*2/S136 to improve the hardness (> HRC50) and anti-wearing performance, meeting the requirements for mass production; tool life up to 500k shots. The push plate structure provides uniform thrust and smooth demolding, preventing molded parts from deforming

Transparent Battery Case (1*2) / Cold runner / Three-plates mold No.24500

Part material
PC+ABS

Part Size/Weight
Φ16.0*90.0mm / 4.98g

☆ Features:Push plate

Transparent Battery Case (1*2) / Cold runner / Three-plates mold No.24500

Display diagram

The mold is designed with mold base > HB280, tab gate, and the pin point gate turns to the side gate to ensure the melt flow. The mold surface polished to 1000# sandpaper to increase the surface glossiness, so that the molded part is smoother w/o sticking with the mold; harden the cavity and core with 1*2/S136 to improve the hardness (> HRC50) and anti-wearing performance, meeting the requirements for mass production; tool life up to 500k shots. The push plate structure provides uniform thrust and smooth demolding, preventing molded parts from deforming
