OEM / ODM ： Precision Injection Molding & Lower inner cover of transparent earphone charging box No.24198

Name: OEM ODM Precision Injection Molding amp Lower inner cover of transparent earphone charging box No24198
Brand: Chitwing
Price: 1 USD

Wholesale OEM / ODM ： Precision Injection Molding & Lower inner cover of transparent earphone charging box No.24198 from china suppliers

Brand Name : Chitwing

Model Number : Earphone Charging Case

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 300 X 300 X 366

IMM Tonnage : 130T

Mold Weight : 206KG

Design software : (3D)UG 4.0/ (2D）CAD

Mould life : 500，000 shots

Steel of cavity : Harden (1*4/S136)

Steel of core : Harden (1*4/S136)

Surface finish : SPI-A1 / VDI21# (Makino)

Standard : LKM

Contact Now

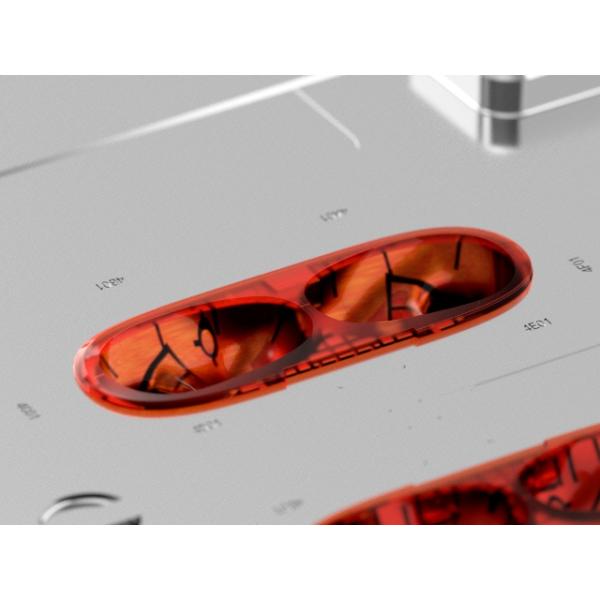

Lower inner cover of

transparent earphone charging box

No.24198

Mold size		Net weight
Length	300	206kg
Width	300	It fits 130T machine.
Height	366
Mold base: Standard CI2530.80110110.

OEM / ODM ： Precision Injection Molding & Lower inner cover of transparent earphone charging box No.24198

Gate	The hot runner turns to the cold runner
Cashew gate

OEM / ODM ： Precision Injection Molding & Lower inner cover of transparent earphone charging box No.24198

Standard: LKM

Surface finish	A surface polished to SPI-A1

	Inner surface EDM with VDI21# (Makino)

Features: 6 lifters

OEM / ODM ： Precision Injection Molding & Lower inner cover of transparent earphone charging box No.24198

The mold was developed (designed and manufactured) by Chitwing. It is made of

high-quality steel with surface hardness > 600HV. It is a two-plates mold. Harden the

cavity and core with 1*4/S136 to improve the surface hardness and anti-wearing

performance. The tool life is up to 500k shots. The part material is PC+ABS.

The part size is 61.4 * 21.7 * 18.1mm, the part weight is 3.5g, with smooth surface

w/o defects and clear details.

Display diagram
