OEM / ODM ： Cold Runner Injection Molding & Glasses Camera Housing+Bracket (1+1) No.23055

Name: OEM ODM Cold Runner Injection Molding amp Glasses Camera HousingBracket 11 No23055
Brand: Chitwing
Price: 1 USD

Wholesale OEM / ODM ： Cold Runner Injection Molding & Glasses Camera Housing+Bracket (1+1) No.23055 from china suppliers

Brand Name : Chitwing

Model Number : Camera

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 280.000 X 270.000 X 296.000

IMM Tonnage : 140T

Mold Weight : 132kg

Slide : 2

Lifter : 4

Part material : PC

Design software : 3D:UG 4.0, 2D:CAD

Part weight : 2g

Type : Three-plates mold

Contact Now

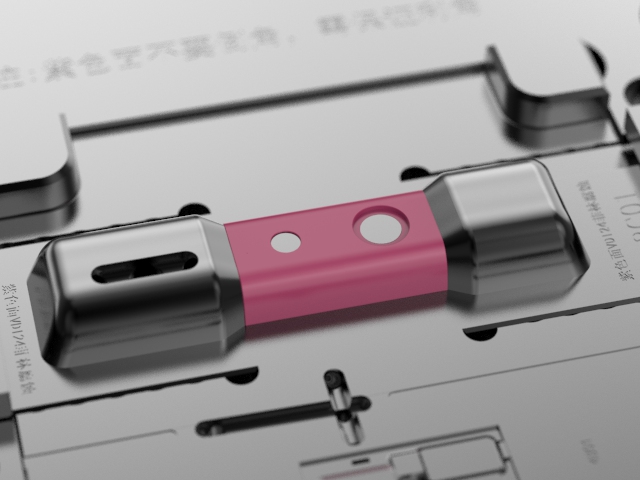

Glasses Camera

Housing+Bracket (1+1)

No.23055

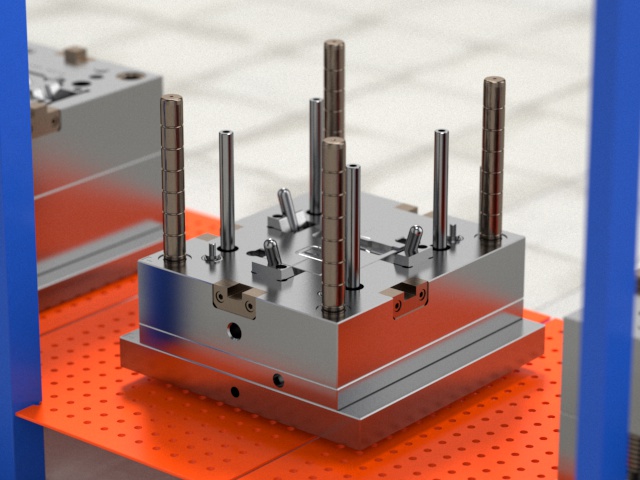

[L] 280mm | [W] 270mm | [H] 296mm

[Mold base] Standard mold base FCI2327 608080 [Standard]: LKM				Tool life up to 500k shots

[Net weight]: 132 kg [IMM tonnage]: 140T

OEM / ODM ： Cold Runner Injection Molding & Glasses Camera Housing+Bracket (1+1) No.23055

[Type]:

Three-plates

mold

To meet the high requirements for part appearance, this is a three-plates

mold requiring high injection pressure, self-degating, with on one spot on

the part surface

[Gate]:		1. Sub gate
		1. Sub gate

OEM / ODM ： Cold Runner Injection Molding & Glasses Camera Housing+Bracket (1+1) No.23055

[Surface finish]:
Housing			Bracket
① A surface VDI24 etch ② Inner surface EDM with VDI24# (Charmilles)			① A surface EDM with VDI27# (Makino) ② Gluing surface EDM with VDI21# (Makino)

[Steel of cavity and core]: harden with 1+1/S136 [Injection/Runner Type]: Cold Runner

OEM / ODM ： Cold Runner Injection Molding & Glasses Camera Housing+Bracket (1+1) No.23055

[Part material / weight]:			[Part size]:
PC / 2g			① 33.80 X 17.26 X 11.08mm ② 27.83 X 14.94 X 4.90mm

Slide	Lifter
2	4

Display diagram
