OEM / ODM ： Multi Cavity Injection Mold & Transparent speaker bracket (1*8) No.22686

Brand Name : Chitwing

Model Number : Mobile Phone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 250.000 X 250.000 X 241.000(mm)

IMM Tonnage : 80(T)

Mold Weight : 89.14(KG)

Mould life : 500，000 shots

Mould base : LKM

Design software : 3D:UG 4.0/2D:CAD

Runner : Cold runner

Part material : PC+ABS

Part net weight : 0.1g

Part Size : 15.10 X 14.53 X 1.25mm

Contact Now

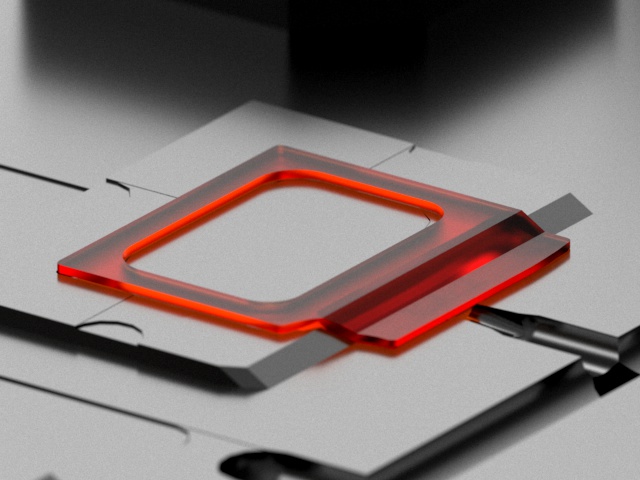

Transparent speaker bracket (1*8)

No.22686

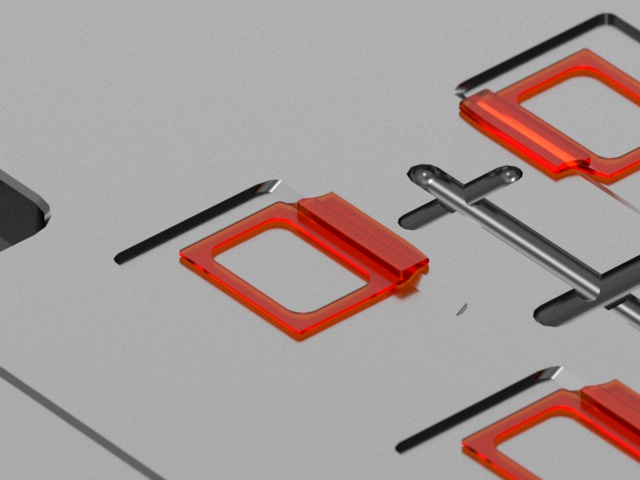

The mold with side gate for easy processing; require manual degating, with obvious gate marks

OEM / ODM ： Multi Cavity Injection Mold & Transparent speaker bracket (1*8) No.22686

Standard Size (mm) Net weight (kg)

IMM tonnage:

80T
LKM 250.000 X 250.000 X 241.000 89.14
☆ Injection/runner type: cold runner (with minimized cold slug)
☆ Type: two-plates mold
☆ Steel of cavity and core: harden with 1*8/S136
☆ Surface finish: VDI 21# (semi-gloss for easy molding and demolding)

Tool life > 500k shots

OEM / ODM ： Multi Cavity Injection Mold & Transparent speaker bracket (1*8) No.22686

Part Size (mm) 15.10 X 14.53 X 1.25
Net weight (g) 0.1
Material PC+ABS

OEM / ODM ： Multi Cavity Injection Mold & Transparent speaker bracket (1*8) No.22686

Display diagram

OEM / ODM ： Multi Cavity Injection Mold & Transparent speaker bracket (1*8) No.22686OEM / ODM ： Multi Cavity Injection Mold & Transparent speaker bracket (1*8) No.22686OEM / ODM ： Multi Cavity Injection Mold & Transparent speaker bracket (1*8) No.22686OEM / ODM ： Multi Cavity Injection Mold & Transparent speaker bracket (1*8) No.22686
