OEM / ODM ： Multi Cavity Injection Mold & Transparent On-board Foot Rest Ball (1*4) No.23916

Product Categories

Dongguan Chitwing Technologies Co., Ltd

Contact Now

Name: OEM ODM Multi Cavity Injection Mold amp Transparent Onboard Foot Rest Ball 14 No23916
Brand: Chitwing
Price: 1 USD

Brand Name : Chitwing

Model Number : In-Car Products

Certification : ISO 9001:2015

Place of Origin : India

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 300 X 300 X 336mm

IMM Tonnage : 130（T）

Mold Weight : 191 kg

Mould life : 500000 shots

Mould base : LKM

Design software : (3D)UG 4.0/ (2D）CAD

Contact Now

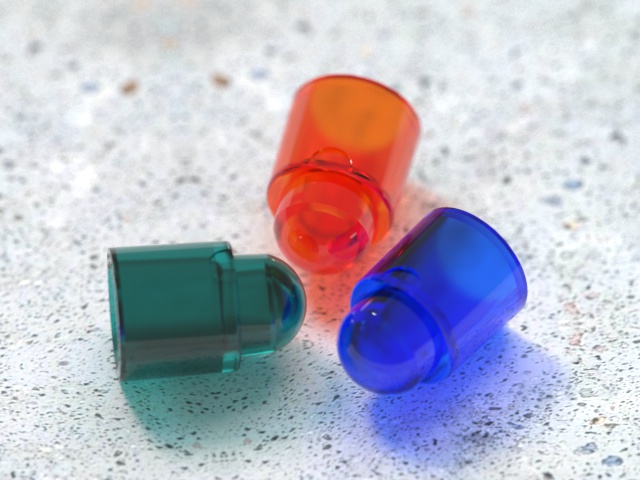

Transparent On-board Foot Rest Ball (1*4)

No.23916

Mold base P/N: Custom CI2530 659090.

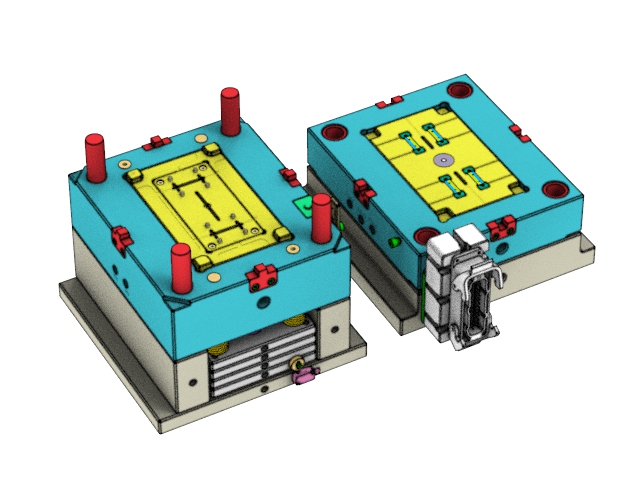

★ Mold size: 300x300x336 ★ Standard: LKM ★ Type: two-plate mold ★ Tool life: 500K shots				Mold net weight
				191kg
				IMM Tonnage
				130T

OEM / ODM ： Multi Cavity Injection Mold & Transparent On-board Foot Rest Ball (1*4) No.23916

Gate: horn gate
The gate is hidden on secondary surface of the core, and it is invisible after the product is assembled.

Part material: POM
It has high mechanical strength and rigidity, strong anti-corrosion and repeated impact resistance, good recoverability, self-lubricating property and good anti-wearing performance

OEM / ODM ： Multi Cavity Injection Mold & Transparent On-board Foot Rest Ball (1*4) No.23916

Part size/weight: 5.20 X 5.20 X 7.45mm/0.07g
Surface finish: Inner surface EDM with SPI-B2
Increase the mold glossiness, w/o pits and scratches, so that the molded part is smooth and clean, w/o sticking with the mold.

Steel of cavity & core: Harden (1*4/S136)
The mold has higher hardness and brittleness, with good anti-wearing and anti-corrosion performance, higher stability and longer tool life.

Injection/runner type: Hot runner
The mold is designed with hot runner, so that material in the POM tube is uniformly heated and has uniform density to produce parts with uniform high quality, with short cycle time, w/o flow marks and gas marks

OEM / ODM ： Multi Cavity Injection Mold & Transparent On-board Foot Rest Ball (1*4) No.23916

Display diagram

Product Tags:

Two Plate Multi Cavity Injection Mold
