OEM / ODM ： Precision Injection Molding & Medical Instrument PN-2105 (1*4) No.21071-B

Name: OEM ODM Precision Injection Molding amp Medical Instrument PN2105 14 No21071B
Brand: Chitwing
Price: 1 USD

Wholesale OEM / ODM ： Precision Injection Molding & Medical Instrument PN-2105 (1*4) No.21071-B from china suppliers

Brand Name : Chitwing

Model Number : Armamentarium

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 320.000 X 350.000 X 326.000

IMM Tonnage : 100T

Mold Weight : 225kg

Part weight : 0.12g

Type : three-plates mold

Slide : 2

Gate : Pin point gate

Steel of cavity and core : harden with 1*4/S136

harden with 1*4/S136 : PC

Contact Now

Medical Instrument PN-2105 (1*4)

No.21071-B

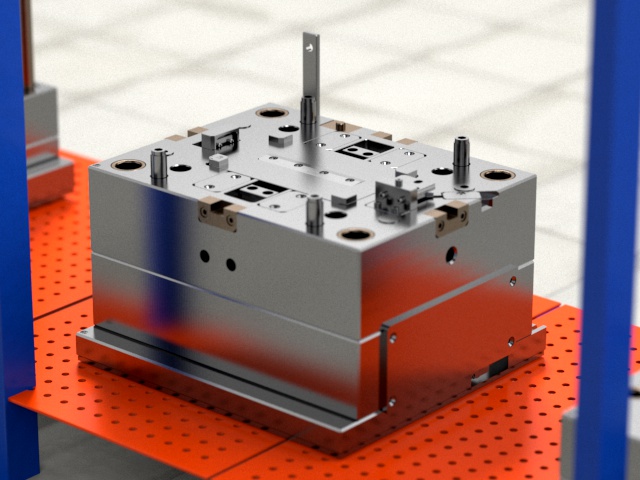

This product is a three-plate mold with a hot runner, designed for short cycle times and minimal material loss. The mold base is standard (P/N: FCI2735 609080) and adheres to the LKM standard. The mold size is [Length]: 320mm, [Width]: 350mm, [Height]: 326mm and it features 2 slides. The hot runner ensures the melt fills the cavity evenly, resulting in parts with stable quality, low demolding residual stress, and minimal part deformation. The tool life is up to 500k shots, making it suitable for automatic mass production.

OEM / ODM ： Precision Injection Molding & Medical Instrument PN-2105 (1*4) No.21071-B

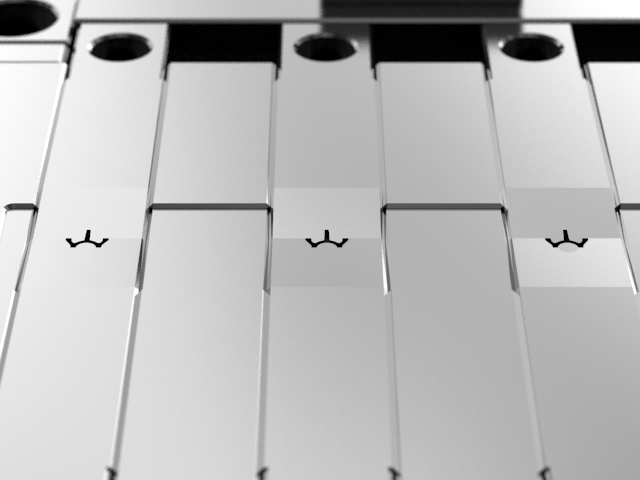

This product features a pinpoint gate and requires a 100T injection molding machine (IMM) tonnage. The part material is PC, and the surface is polished to SPI B-2 standard. The cavity and core of the mold are hardened with 1*4/S136. The mold has a net weight of 225 kg, while the part weight is 0.12g. The part size measures 9.24 X 9.24 X 4.00mm.

OEM / ODM ： Precision Injection Molding & Medical Instrument PN-2105 (1*4) No.21071-B

Display diagram
