Medical Instrument PN-1809 (1*4) Two-Plates Mold Cold Runner No.21064-C

Name: Medical Instrument PN1809 14 TwoPlates Mold Cold Runner No21064C
Brand: Chitwing
Price: 1 USD

Wholesale Medical Instrument PN-1809 (1*4) Two-Plates Mold Cold Runner No.21064-C from china suppliers

Brand Name : Chitwing

Model Number : Armamentarium

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 300.000 X300.000 X 271.000mm

IMM Tonnage : 100(T)

Mold Weight : 148(kg)

Standard : LKM

Gate : Side gate

Standard mold base P/N : CI25 30.50.80.80

Surface finish : SPI-A2

Contact Now

Medical Instrument PN-1809 (1*4)

No.21064-C

Description:

Two-plates mold Cold runner is a type of injection mold commonly used in the manufacturing industry. It consists of two main plates that form the cavity and core of the mold. The cold runner system refers to the method of delivering the molten material to the mold cavity without the use of a heated runner. This type of mold is often used for simple part geometries and can help reduce material waste.

Application:

Medical health electronics
Smart wear
Smart doorbell
Daily necessities

Features:

Our LKM standard mold base, part number CI25 30.50.80.80. This mold measures 300mm long, 300mm wide, and 271mm high. It boasts an SPI-A2 surface finish, a side gate design, and employs 1*4/S136 mold steel for the cavity and core. With its two-plate design, this mold allows for easy degating and is cost-effective. It is compatible with a 100T injection molding machine and ensures stable molding quality, uniform mold walls, high glossiness, a good balance of cavity pressure, and a long tool life for mass production. The molded parts exhibit uniform thickness without flow marks. The part material is PC, with a tool life of 500k shots, cold runner injection/runner type, a part weight of 0.6g, and a part size of 7.65 X 57.56 X 2.87mm.

Advantage:

Our two-plates mold with a cold runner system. This mold design consists of two main plates that separate from each other to release the molded part. The cold runner system means that the material for the molded part is kept cold and solidified within the mold, which can help reduce material waste and improve production efficiency. This type of mold is often used for high-volume production of plastic parts where a runner system is necessary to deliver the molten material to the cavities. The two-plates design allows for easy demolding and is cost-effective for mass production.

Medical Instrument PN-1809 (1*4) Two-Plates Mold Cold Runner No.21064-C

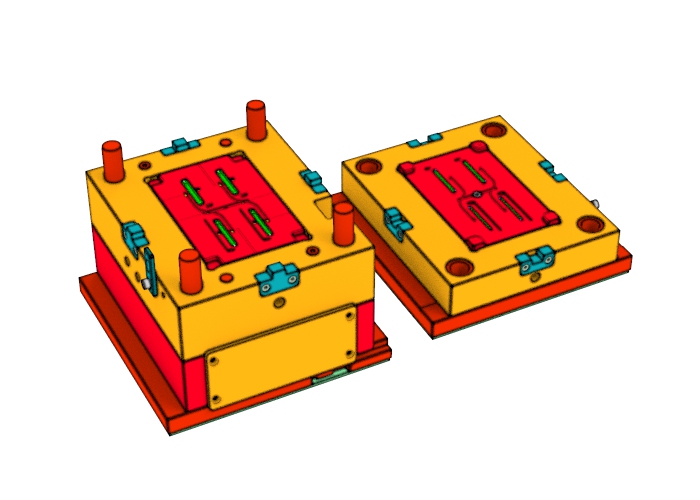

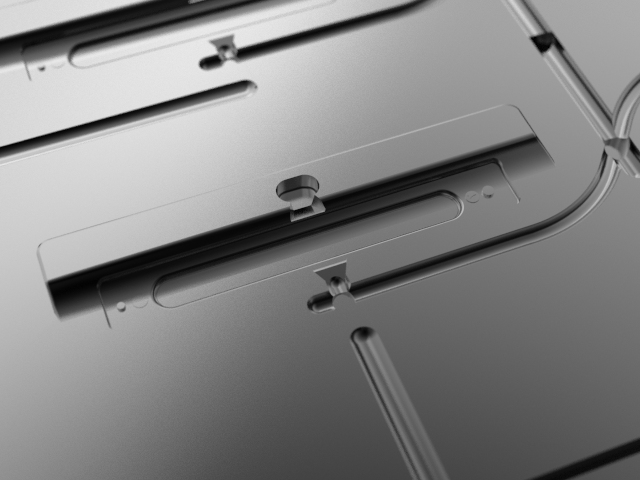

Display diagram
