OEM / ODM ：Transparent Earphone Terminal (1*8) No.23570-D

Brand Name : Chitwing

Model Number : Earphone

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

IMM Tonnage : 60 (T)

Mold Weight : 27.54(kg)

Gate : Sub gate

Type : Two-plates mold

Slide : 2

Cavity/Core : Harden with 1*8/S136

Part size : 6.21 X 5.61 X 2.91mm

Part weight : 0.03g

Contact Now

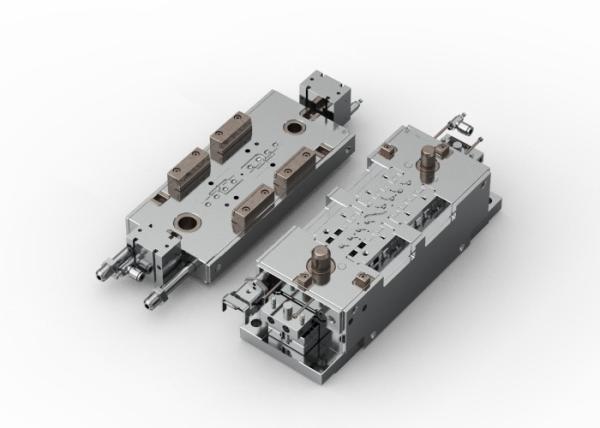

Transparent Earphone Terminal (1*8)

No.23570-D

Mold dimensions: 110x330x125mm
Standard: LKM
Mold Type: Two-plate mold
Number of slides: 2
Net weight of the mold: 27.54kg
IMM Tonnage: 60T

OEM / ODM ：Transparent Earphone Terminal (1*8) No.23570-D

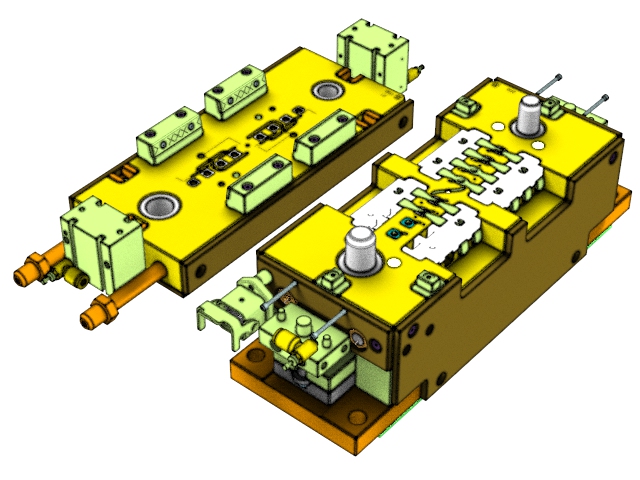

The two-plate mold is equipped with a cold runner system, which reduces the labor and time cost during the early stages of R&D and design.

OEM / ODM ：Transparent Earphone Terminal (1*8) No.23570-D


Gate: Sub gate
Part material: PA
Cavity/Core material: Hardened with 1*8/S136

OEM / ODM ：Transparent Earphone Terminal (1*8) No.23570-D

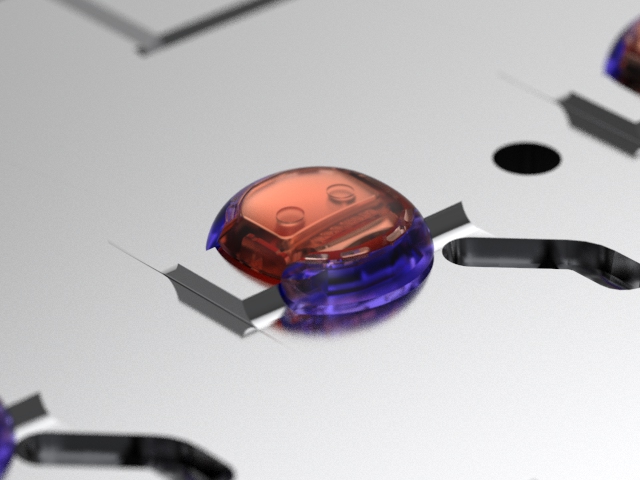

The surfaces of the mold are polished to SPI-A3 standard. Additionally, the cavity and core are hardened to enhance their hardness, wear resistance, and corrosion resistance. The mold's uniform wall thickness ensures a perfect fit for the molten PA material, resulting in molded parts with stable quality, absence of sink marks, uniform thickness, and precise thread formation.

Display diagram

OEM / ODM ：Transparent Earphone Terminal (1*8) No.23570-DOEM / ODM ：Transparent Earphone Terminal (1*8) No.23570-DOEM / ODM ：Transparent Earphone Terminal (1*8) No.23570-DOEM / ODM ：Transparent Earphone Terminal (1*8) No.23570-DOEM / ODM ：Transparent Earphone Terminal (1*8) No.23570-DOEM / ODM ：Transparent Earphone Terminal (1*8) No.23570-D
