OEM / ODM ： Cold Runner Injection Molding & Transparent Glasses Inner Housing 1*1 No.23057-B

Brand Name : Chitwing

Model Number : Camera

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 350.0000 X 450.0000 X 446.0000

IMM Tonnage : 140T

Mold Weight : 425kg

Runner : Cold runner

Mould life : ≥500000 shots

Mould base : LKM

Design software : (3D)UG 4.0/ (2D）CAD

Material : PC

Gate type : Sub gate

Contact Now

Transparent Glasses Inner Housing (1*1)

No.23057-B

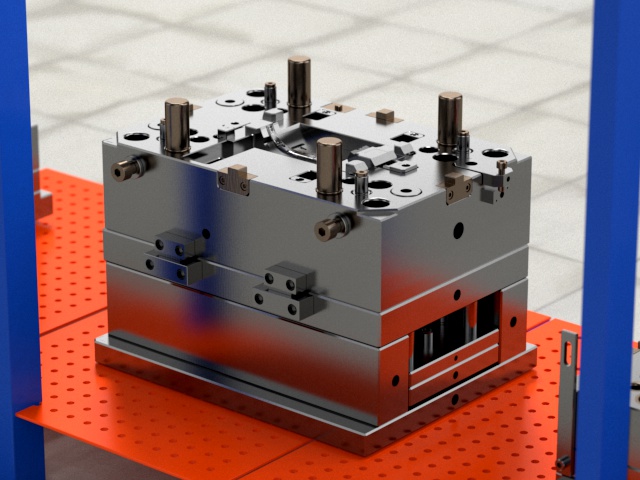

This mold is a three-plates mold with a size of 350x450x446mm. It is built on a DAI3045 70120100 mold base and follows the LKM standard. The unique feature of this mold is its self-degating mechanism, which eliminates the need for obvious gates and enhances the aesthetic appearance of the molded parts. It is equipped with 5 slides and 7 lifters, strategically placed for easy demolding. The tool life of this mold is 500k shots, ensuring durability and longevity.

OEM / ODM ： Cold Runner Injection Molding & Transparent Glasses Inner Housing 1*1 No.23057-BOEM / ODM ： Cold Runner Injection Molding & Transparent Glasses Inner Housing 1*1 No.23057-BOEM / ODM ： Cold Runner Injection Molding & Transparent Glasses Inner Housing 1*1 No.23057-BOEM / ODM ： Cold Runner Injection Molding & Transparent Glasses Inner Housing 1*1 No.23057-B

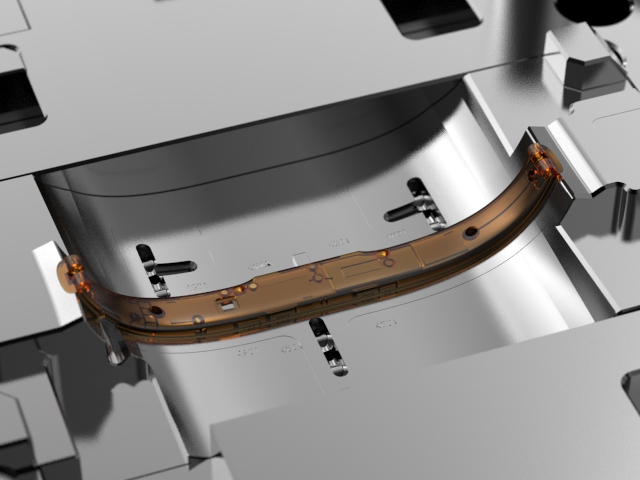

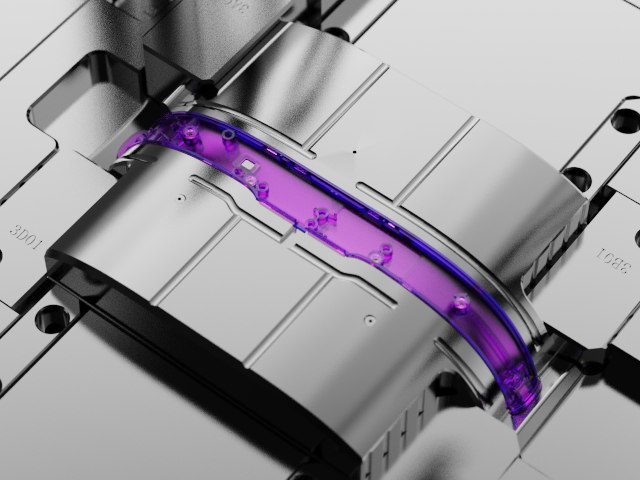

The part material used is PC, and the gate type is a sub gate, which is invisible on the mold surface. The cavity and core are made of hardened steel with a 1*1/S136 composition. The injection type is Cold Runner, and the required IMM tonnage is 140T. The mold itself weighs 425kg, and the weight of the molded part is 4.6g. The dimensions of the part are 17.00 X 147.90 X 33.24mm.

OEM / ODM ： Cold Runner Injection Molding & Transparent Glasses Inner Housing 1*1 No.23057-B

Display diagram

OEM / ODM ： Cold Runner Injection Molding & Transparent Glasses Inner Housing 1*1 No.23057-BOEM / ODM ： Cold Runner Injection Molding & Transparent Glasses Inner Housing 1*1 No.23057-BOEM / ODM ： Cold Runner Injection Molding & Transparent Glasses Inner Housing 1*1 No.23057-BOEM / ODM ： Cold Runner Injection Molding & Transparent Glasses Inner Housing 1*1 No.23057-B
