OEM / ODM Injection Molding Transparent VR Rear Shell Ring 1*2 No 22731-C

Product Categories
Dongguan Chitwing Technologies Co., Ltd
Contact Now

OEM / ODM Injection Molding Transparent VR Rear Shell Ring 1*2 No 22731-C

Brand Name : Chitwing

Model Number : VR Products

Certification : ISO 9001:2015

Place of Origin : Vietnam

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 180 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 300*300*306mm

IMM Tonnage : 80（T）

Mold Weight : 166（kg）

Standard : LKM

Injection type : Cold runner

runner type : Cold runner

Steel of cavity : Harden (1*2/S136)

Steel of core : Harden (1*2/S136)

Type : Three-plates mold

Tool life : 500k shots

Part weight : 1.5g

Contact Now

Transparent VR Rear Shell Ring (1*2)

No.22731-C

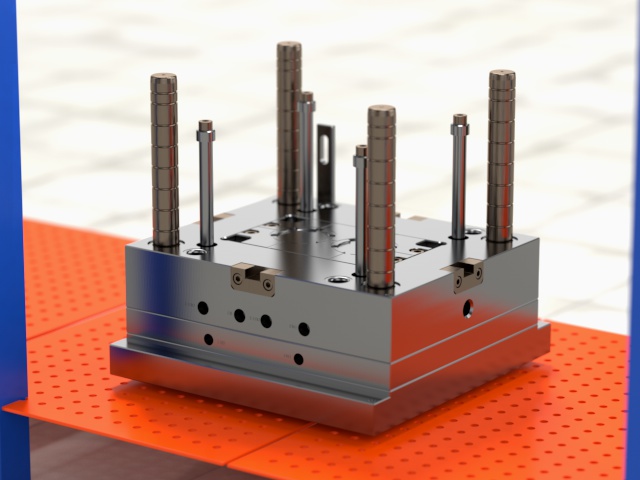

The mold base utilized is the standard mold base identified by part number FCI2530.608080, featuring dimensions of 300mm in length, 300mm in width, and 306mm in height. Weighing 166kg, this mold boasts a tool life of 500,000 shots.
This particular mold is a three-plates mold that eliminates the need for post-processing and enables automatic demolding. It is designed with a cold runner injection/runner type and a side gate, with the pin point gate converted to the side gate.

OEM / ODM Injection Molding Transparent VR Rear Shell Ring 1*2 No 22731-C

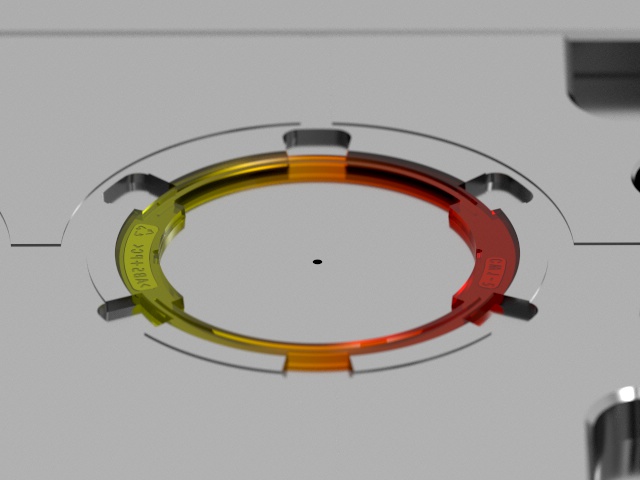

The mold's cavity and core are constructed from hardened steel (1*2/S136). There are two choices for the mold's surface finish: 1) A surface treated with MT11010 etch, and 2) Other surfaces treated with EDM using VDI18# (Makino).

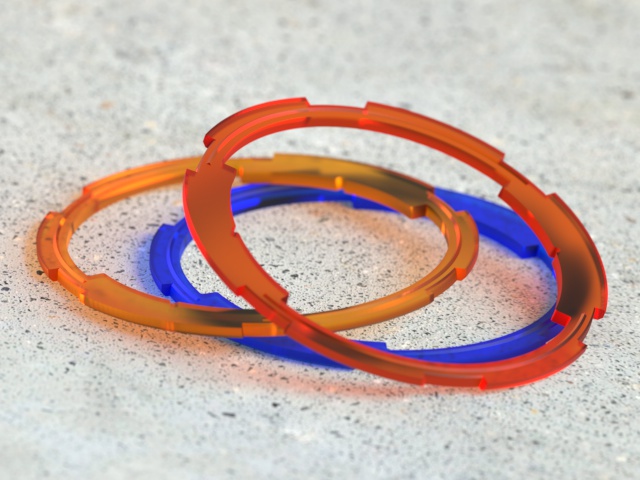

As for the injection part, PC+ABS is the material utilized. It weighs 1.5g and has dimensions of 49.16mm x 49.16mm x 2.0mm.

OEM / ODM Injection Molding Transparent VR Rear Shell Ring 1*2 No 22731-C

OEM / ODM Injection Molding Transparent VR Rear Shell Ring 1*2 No 22731-C

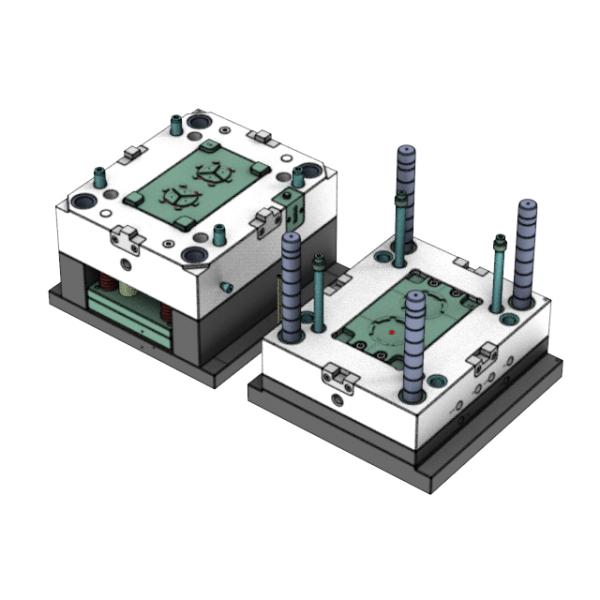

Display diagram

OEM / ODM Injection Molding Transparent VR Rear Shell Ring 1*2 No 22731-COEM / ODM Injection Molding Transparent VR Rear Shell Ring 1*2 No 22731-COEM / ODM Injection Molding Transparent VR Rear Shell Ring 1*2 No 22731-COEM / ODM Injection Molding Transparent VR Rear Shell Ring 1*2 No 22731-C
